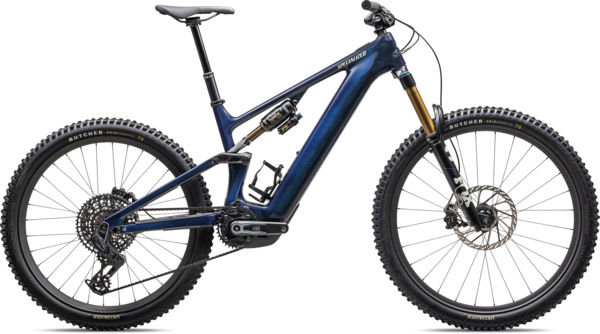

Specialized Turbo Levo 4 Pro
$10,999.99 - $11,499.99
Details
The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.
| Frame Size | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|
| Stack (mm/in) | 618mm (24.3") | 626mm (24.6") | 638mm (25.1") | 652mm (25.7") | 667mm (26.3") |
| Reach (mm/in) | 435mm (17.1") | 455mm (17.9") | 480mm (18.9") | 505mm (19.9") | 535mm (21.1") |
| Headtube Length (mm/in) | 95mm (3.7") | 103mm (4.1") | 117mm (4.6") | 132mm (5.2") | 149mm (5.9") |
| Headtube Angle (degrees) | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| BB Height (mm/in) | 350mm (13.8") | 350mm (13.8") | 350mm (13.8") | 350mm (13.8") | 350mm (13.8") |
| BB Drop (mm/in) | 29.5mm (1.2") | 29.5mm (1.2") | 29.5mm (1.2") | 29.5mm (1.2") | 29.5mm (1.2") |
| Trail (mm/in) | 132mm (5.2") | 132mm (5.2") | 132mm (5.2") | 132mm (5.2") | 132mm (5.2") |
| Fork Length (mm/in) | 577mm (22.7") | 577mm (22.7") | 577mm (22.7") | 577mm (22.7") | 577mm (22.7") |
| Fork Rake/Offset (mm/in) | 44mm (1.7") | 44mm (1.7") | 44mm (1.7") | 44mm (1.7") | 44mm (1.7") |
| Front Center (mm/in) | 765mm (30.1") | 789mm (31.1") | 820mm (32.3") | 851mm (33.5") | 888mm (35.0") |
| Chainstay Length (mm/in) | 435mm (17.1") | 435mm (17.1") | 435mm (17.1") | 435mm (17.1") | 435mm (17.1") |
| Wheelbase (mm/in) | 1200mm (47.2") | 1223mm (48.1") | 1254mm (49.4") | 1286mm (50.6") | 1323mm (52.1") |
| Top-Tube Length (mm/in) | 578mm (22.8") | 599mm (23.6") | 627mm (24.7") | 655mm (25.8") | 689mm (27.1") |
| Bike Standover Height (mm/in) | 753mm (29.6") | 754mm (29.7") | 753mm (29.6") | 758mm (29.8") | 761mm (30.0") |
| Seat Tube Length (mm/in) | 390mm (15.4") | 405mm (15.9") | 425mm (16.7") | 445mm (17.5") | 465mm (18.3") |
| Seat Tube Angle (degrees) | 77° | 77° | 77° | 77° | 77° |
| Saddle Height for Effective ST Angle (mm/in) | 690mm (27.2") | 735mm (28.9") | 780mm (30.7") | 825mm (32.5") | 870mm (34.3") |
| Max Seatpost Insertion (mm/in) | 274mm (10.8") | 289mm (11.4") | 313mm (12.3") | 337mm (13.3") | 357mm (14.1") |
| Min Seatpost Insertion (mm/in) | 80mm (3.1") | 80mm (3.1") | 80mm (3.1") | 80mm (3.1") | 80mm (3.1") |
| Crank Length (mm/in) | 155mm (6.1") | 155mm (6.1") | 155mm (6.1") | 155mm (6.1") | 155mm (6.1") |
| Handlebar Width (mm/in) | 780mm (30.7") | 800mm (31.5") | 800mm (31.5") | 800mm (31.5") | 800mm (31.5") |
| Stem Length (mm/in) | 40mm (1.6") | 40mm (1.6") | 40mm (1.6") | 40mm (1.6") | 40mm (1.6") |
| Saddle Width (mm/in) | 155mm (6.1") | 143mm (5.6") | 143mm (5.6") | 143mm (5.6") | 143mm (5.6") |
| Seatpost Length (mm/in) | 125mm (4.9") | 170mm (6.7") | 190mm (7.5") | 190mm (7.5") | 190mm (7.5") |
Specs
| Frame | All new Levo 4 frame, 150mm travel, w/SWAT storage, side entry battery, fork travel up to 180mm |
|---|---|
| Fork | FOX FLOAT 38 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm QR axle, 44mm offset, 160mm of travel |
| Rear Shock | Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, 210x55mm |
| Wheels | Front: Roval Traverse HD 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 350, 15x110, 28h Rear: Roval Traverse HD 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 350, 12x148, 32h |
| Tires | Front: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.3" Rear: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.3" |
| Crankset | SRAM XO Alloy crank, 155mm, ISIS interface |
| Chainrings | SRAM 34T T-Type chainring, 104 BCD, steel |
| Shifters | SRAM AXS POD Controller |
| Rear Derailleur | SRAM X0 Eagle Transmission |
| Cassette/Freewheel | SRAM XO 1295, 12 speed, 10-52 |
| Chain | SRAM X0 |
| Brakes | Front: SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor Rear: SRAM Maven Silver, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor |
| Handlebars | RaceFace Era Carbon, riser bar, 5-degree upsweep, 8-degree backsweep, S2:20mm Rise, S3-S6:40mm Rise, 800mm |
| Tape/Grips | Deity Lockjaw grips |
| Stem | Industry 9 A35 Moutain stem, 35mm clamp, 40mm length |
| Seatpost | Bike Yoke Revive Max 3.0 Dropper post. S2:125mm, S3:160mm, S4: 185mm, S5/S6:213mm |
| Saddle | Bridge Mimic Expert, ti rail |
| Motor | All New Specialized 3.1 Motor, 101Nm torque, 666W power |
| Battery | 840wh battery |
| Charger | Specialized 4amp charger |
| Controller/Display | All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Gloss Blue Onyx/Dark Navy/Birch / S4 / 29-inch front / 27.5-inch rear | 888818953240 | 95224-1004 | 210000030186 |
| Gloss Metallic Obsidian / S3 / 29-inch front / 27.5-inch rear | 196625209437 | 95224-1303 | 210000030260 |
| Gloss Metallic Obsidian / S4 / 29-inch front / 27.5-inch rear | 196625209413 | 95224-1304 | |
| Gloss Metallic Obsidian / S5 / 29-inch front / 27.5-inch rear | 196625209390 | 95224-1305 | 210000030188 |
| Gloss Metallic Obsidian / S6 / 29-inch front / 27.5-inch rear | 196625209376 | 95224-1306 |
